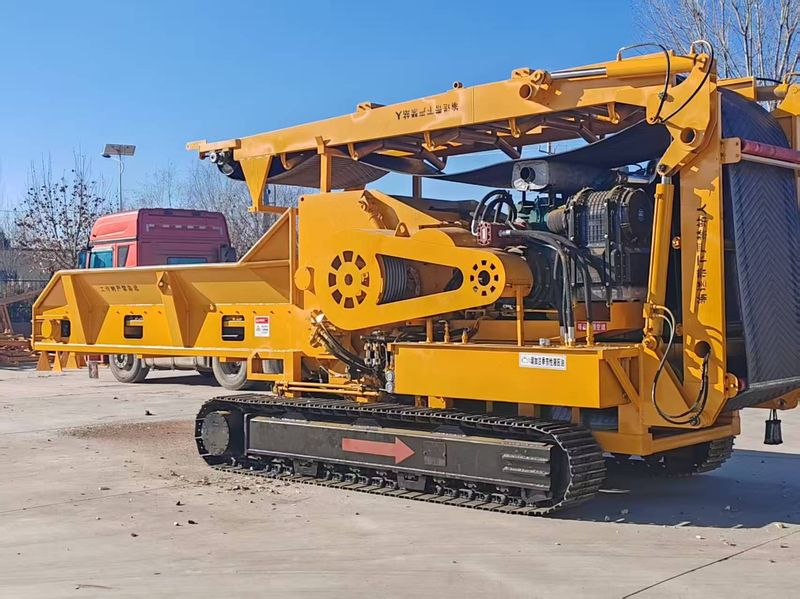

WD1380C
WD1380C — Crawler horizontal grinder. 368KW/500HP diesel, 1320x530mm inlet. Medium-scale forestry and biomass.
Spezifikationen
| Model | WD1380C |
| Chassis | Crawler |
| Power | 368KW / 500HP Diesel |
| Inlet Size | 1320 x 530 mm |
| Dimensions | 9430 x 2400 x 3650 mm |
| Weight | 16.5 Tonnes |
| Cutter Roller Ø | 800 mm |
| Spindle Length | 2170 mm |
| Fuel Tank | 360 L |
| Hydraulic Tank | 270 L |
| Discharge Belt | 1200mm wide, 130m/min |
WD1380C
The WD1380C is a crawler horizontal grinder for medium-scale processing of long wood, branches, forestry residue, and biomass feedstock.
Anwendungen
- ✓Medium-scale forestry projects
- ✓Frequent repositioning on uneven ground
- ✓Long wood and branch processing
Recommended Feed Materials
- Long wood and large branches
- Forestry residue
- Sawmill and pallet waste
- Prepared biomass feedstock
Related Horizontal-Häcksler Models
Horizontal Grinder

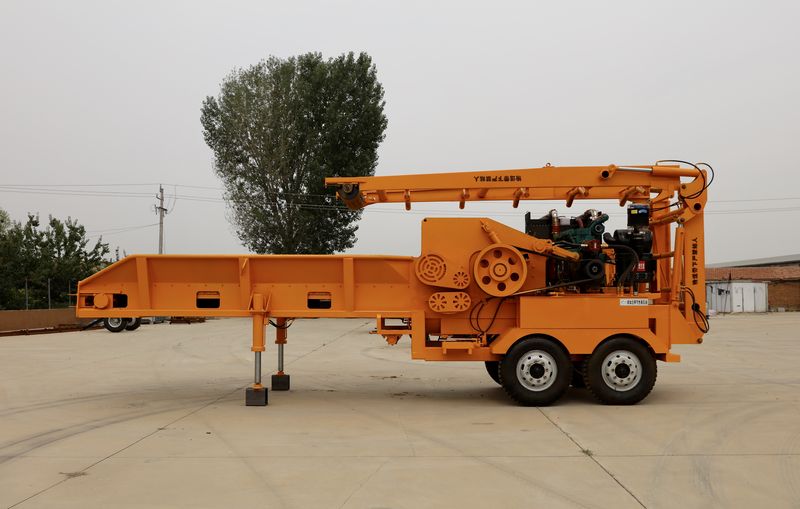

WD1380W
Road-wheeled horizontal grinder for prepared sites.
Horizontal Grinder

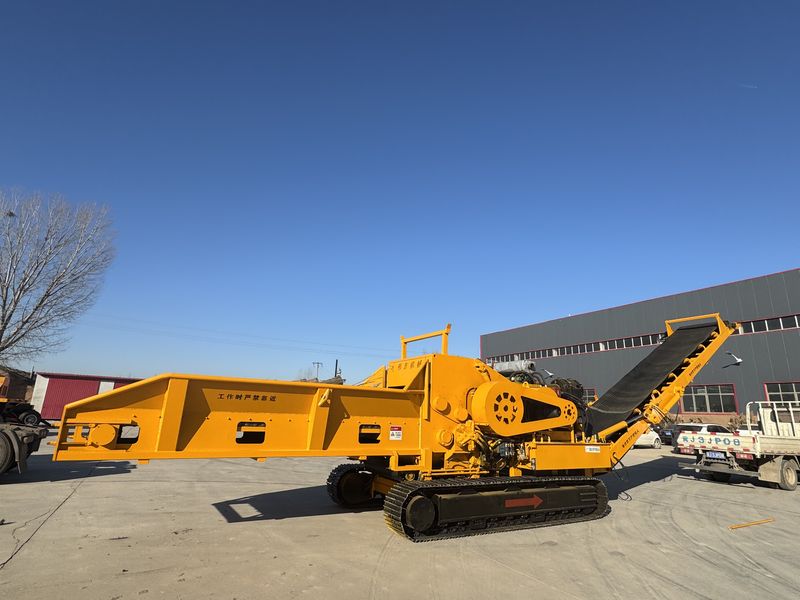

WD1690C
Heavy-duty crawler horizontal grinder for large-scale operations.
Horizontal Grinder
WD1690M
Skid-mount horizontal grinder for fixed installations.
Horizontal Grinder

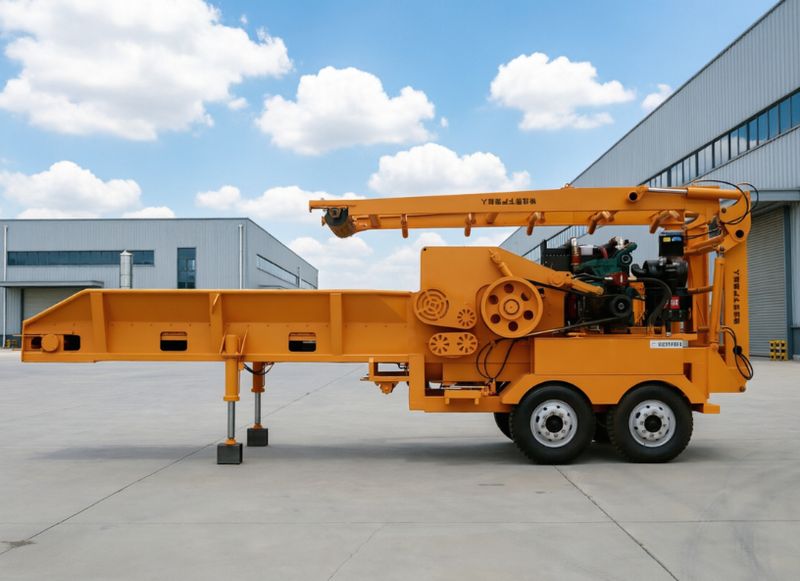

WD1690W
Road-wheeled horizontal grinder for prepared sites.
Horizontal Grinder
WDE1690C
Electric crawler horizontal grinder for large-scale electric operations.
Horizontal Grinder
WDE1690M
Electric skid-mount horizontal grinder for fixed electric installations.
Horizontal Grinder

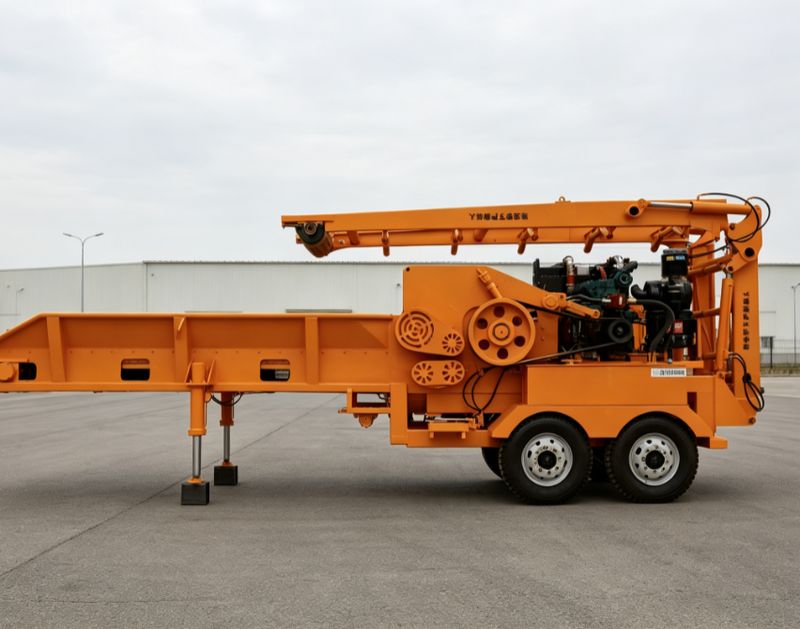

WDE1690W
Electric road-wheeled horizontal grinder.
Ready to spec?
Tell us your material, throughput requirements, and site conditions. We'll configure the right machine for you.
